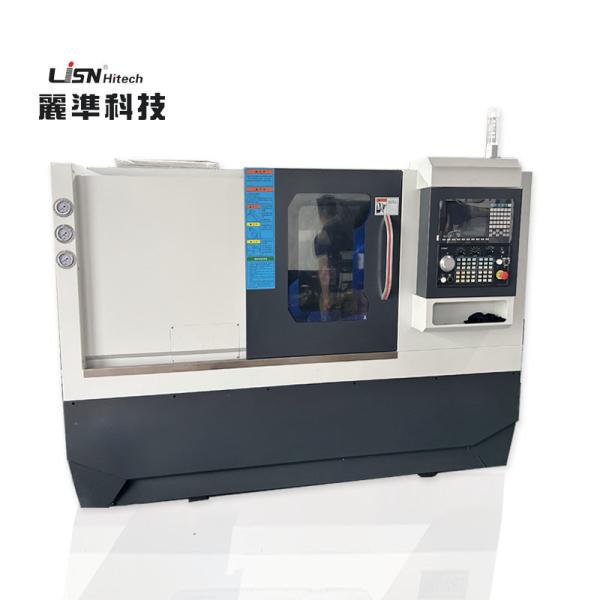

Horizontal CNC Turning And Milling Machine Lathe With 3500rpm

Name: Horizontal CNC Turning And Milling Machine Lathe With 3500rpm
Brand: Li Zhun
Price: 1 USD

Buy cheap Horizontal CNC Turning And Milling Machine Lathe With 3500rpm product

Brand Name : Li Zhun

Model Number : LZ-500

Certification : SGS

Place of Origin : China

MOQ : 1

Payment Terms : T/T, L/C

Supply Ability : 10000 per year

Delivery Time : 15-30 work days

Packaging Details : Wooden Box

Product Name : CNC Turning And Milling machine

Condition : New

Warranty : 1 Year

Spindle Speed : 3500rpm

Weight : 4600kg

Max Machining Length : 500mm

Spindle Motor : 7.5KW

Contact Now

High Speed CNC Turning And Milling machine with 3500rpm

Machine adopts 45 ° inclined bed overall structure, configuration and high precision linear rolling guide, preload Taiwan adopt servo motor with high torque low inertia and elastic coupling screw straight league, screw pre-stretching structure is used in bearing can eliminate drive back gap and thermal deformation precompensation machine running for a long time influence on accuracy, ensure the position precision and repeat positioning accuracy; The position precision of the machine is high, and the chip removal is smooth, suitable for high speed and high precision machining.

Choice of tool row mode, tool change speed, high positioning accuracy.

Main Technical Parameters

Item	Specifications	MODELS→	LZ -5000
Processing Range	Max. Swing Over Bed/Slide	mm	560
	Max. Processing Diameter	mm	500
	Max. Processing Length	mm	530
Control System	CNC System	-	SYNTEC
Spindle And Chuck Parameters	SpindleType	-	A2-6
	Spindle Speed Range	rpm	3500
	Bar Diameter	mm	52
Feed	X.Z-Axis Limit Stroke	mm	250/610
Tailstock Section	Tailstock Quill Dia.	mm	80
	Tailstock Quill Travel	mm	100
	Taper Hole Of Tailstock Sleeve	-	Morse 5#
Machine Dimension	Net Weight	kg	4600

Detail drawing
Horizontal CNC Turning And Milling Machine Lathe With 3500rpm

FAQ

1. Is it all right to make customer's own brand name?

A: yes. we are available with OEM

2. Are you a manufactuer or trading company?

A:We are the manufacturer

3. Can you do the design for us?

A: yes. if you want a different control system design or higher column , we are available.

4 . What is your terms of delivery?

A: FOB shenzhen.

5. What's your payment term?

A: T/T OR L/C at sight.
