LZ500 High Speed CNC Slant Bed Lathe Machine CNC Turning Lathe
This machine tool is a high speed, high precision, high reliability of inclined bed machine tool. The main components such as bed base, bed body and headbox are cast from high strength materials to ensure the long-term stability of the machine tool.
Machine adopts 45 ° inclined bed overall structure, configuration and high precision linear rolling guide, preload Taiwan adopt servo motor with high torque low inertia and elastic coupling screw straight league, screw pre-stretching structure is used in bearing can eliminate drive back gap and thermal deformation precompensation machine running for a long time influence on accuracy, ensure the position precision and repeat positioning accuracy; The position precision of the machine is high, and the chip removal is smooth, suitable for high speed and high precision machining.
Choice of tool row mode, tool change speed, high positioning accuracy.
Main Technical Parameters
| Item | Specifications | MODELS→ | LZ -5000 |
Processing Range | Max. Swing Over Bed/Slide | mm | 560 |
| Max. Processing Diameter | mm | 500 |
| Max. Processing Length | mm | 530 |
| Control System | CNC System | - | SYNTEC |
| Spindle And Chuck Parameters | SpindleType | - | A2-6 |
| Spindle Speed Range | rpm | 3500 |
| Bar Diameter | mm | 52 |
| Feed | X.Z-Axis Limit Stroke | mm | 250/610 |
| Tailstock Section | Tailstock Quill Dia. | mm | 80 |
| Tailstock Quill Travel | mm | 100 |
| Taper Hole Of Tailstock Sleeve | - | Morse 5# |
| Machine Dimension | Net Weight | kg | 4600 |

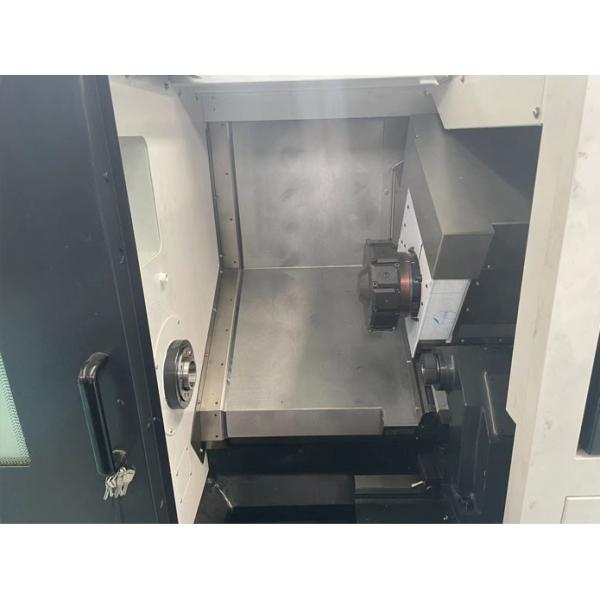

Detail drawing
FAQ
1. Is it all right to make customer's own brand name?
A: yes. we are available with OEM
2. Are you a manufactuer or trading company?
A:We are the manufacturer
3. Can you do the design for us?
A: yes. if you want a different control system design or higher column , we are available.
4 . What is your terms of delivery?
A: FOB shenzhen.
5. What's your payment term?
A: T/T OR L/C at sight.
